2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation

ब्रांड नाम:	HanWei
मॉडल संख्या:	HW-20-60150
एमओक्यू:	1 सेट
कीमत:	USD / Set
भुगतान की शर्तें:	T/T
आपूर्ति करने की क्षमता:	2000 Sets / year

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

शेन्ज़ेन। चीन

प्रमाणन:

हैंडहेल्ड लेजर गन का वजन:

0.7 किग्रा

वेल्डिंग लेजर बीम का आकार:

0-5 मिमी समायोज्य

लेजर बीम आकार की सफाई:

0-50 मिमी समायोज्य

हैंडहेल्ड लेजर गन सामग्री:

एल्युमिनियम मिश्र धातु और स्टेनलेस स्टील

वेल्डिंग सामग्री:

स्टील / स्टेनलेस स्टील / एल्यूमीनियम

Laser Power:

Up to 3000W for welding and 2000W for cleaning

वायर फीडिंग डिवाइस:

मानक प्रकार: 0.8&1.0&1.2&1.6 मिमी तार

Double Route Wire Feeder:

Option ( Same time double route feeding )

Welding parameter storage:

30 kinds of different welding parameter save

पैकेजिंग विवरण:

प्लाईवुड पैकिंग निर्यात करें

Supply Ability:

2000 Sets / year

उत्पाद का वर्णन

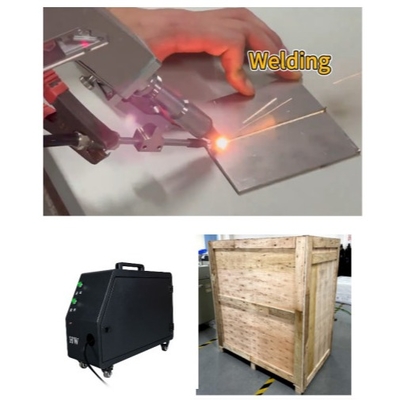

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation Description:

The Handheld Single-Motor Tri-Function Apparatus marks a substantial innovation in the domain of portable multi-purpose tools. Driven by a singular yet robust motor, this device integrates three core functionalities: welding, cutting, and cleaning, all encased within an ergonomically designed and sleek handheld structure.

For welding, it meticulously regulates amperage and voltage to produce a steady arc, facilitating sturdy and precise welds on diverse materials such as carbon steel, stainless steel, and aluminum alloys. During cutting operations, a concentrated high-intensity beam penetrates materials of varying thicknesses at adjustable speeds and depths, ensuring neat and efficient incisions. In cleaning mode, it draws in cleaning solvents or water and converts them into a powerful, adjustable high-pressure stream through a flexible nozzle, effectively eliminating rust, grease, and impurities.

This apparatus demonstrates exceptional versatility, suitable for a wide range of environments—including workshops, construction sites, and industrial maintenance areas—delivering excellent performance across all three core functions.

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation 0

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation Features:

Product Name: Fiber Laser 3-in-1 Machine
Handheld Laser Gun Weight: 0.7kg
Cleaning Laser Beam Size: 0-50mm Adjustable
Laser Beam Form: Line “一”
Cooling method: Water Cooling
Standard Focus length: 60 and 150mm standard Focus length adjustable
Laser Power: Up to 3000W for welding and 2000W for cleaning
Welding Laser Beam Size: 0-5mm Adjustable
Welding Materials: Steel / Stainless Steel / Aluminum
Laser Head Connection: QBH
Gas: Argon / Nitrogen

For metal fabrication, mechanical maintenance, and surface pretreatment in workshops and industrial plants, the Handheld Single-Motor Tri-Function Device stands as a premium solution. Boasting a peak power output of 3000W for welding and 2000W for cleaning, it efficiently handles steel, stainless steel, and aluminum materials. Its laser beam system features a linear design with a QBH interface, requiring argon or nitrogen gas for operation.

This portable laser unit weighs just 0.7 kilograms and offers an adjustable standard focal length ranging from 60 to 150mm. It further allows precise calibration of the laser beam diameter during both welding and cutting tasks: the welding beam diameter is tunable between 0–5mm, while the cleaning beam diameter can be adjusted from 0–50mm. To ensure optimal thermal management, the device incorporates a water-cooling system, maintaining consistent performance and extending its service life.

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight	0.7 KG
Cleaning Beam Form	Line " 一 "
Standard Focus length	60 and 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Fiber Connector	QBH
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Parameter Save	30 kinds of different welding parameter save

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation 1

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation Application Advantages:

The HanWei HW-20-60150 Handheld Single-Wobble Tri-Function Machine offers outstanding application benefits. Its remarkable portability, derived from a compact and lightweight architecture, makes it ideally suited for confined-space operations and mobile tasks. This enhances operational agility without relying on complex equipment or extensive manpower.

The device integrates welding, cutting, and cleaning functionalities. For welding, with a 3000W power output, it excels in joining carbon steel, stainless steel, and aluminum alloys. The welding beam, adjustable from 0 to 5mm, adapts to diverse welding requirements. In terms of cutting, the laser beam penetrates materials with adjustable speed and depth parameters. For cleaning, the 2000W-powered beam—adjustable from 0 to 50mm—enables high-efficiency surface treatment, suitable for automotive maintenance, household applications, and industrial equipment upkeep.

It boasts high energy efficiency and cost-effectiveness. The single-motor design cuts down energy consumption, simplifies work processes, and minimizes both time and operational costs. Its straightforward structure also helps lower manufacturing and maintenance expenses. Moreover, it features user-friendly operation: no specialized training is needed, making it accessible to a wide range of users while reducing error rates and training-related expenditures.

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation Packing:

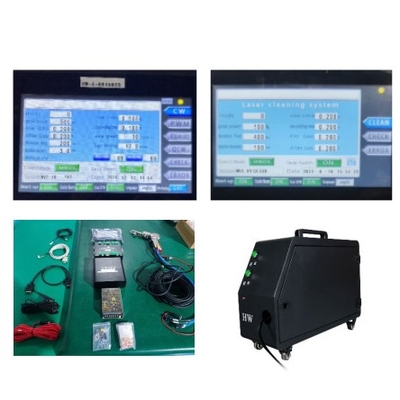

One Handheld Laser Head
Seven kinds of nozzles
One Touch Screen Monitor
One Focus Lens for cleaning
One Safety Switch Clip
One Wire feeding device
A set of Connection Cables and Line
One 15v Power Supply
One Controller
Two Protective Lens
One User Manual

2000W Handheld 3-in-1 Laser Machine Enables Multi-Process Integrated Operation 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to providing top - notch welding technologies to global integrators. As a national - level high - tech enterprise and a newly recognized specialized entity, it centers on the research and development, manufacturing, and sales of a full industrial chain that encompasses welding lasers, laser control systems, optical systems, and welding processes. The company's product lineup consists of nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, and their accompanying components.

Under the guidance of the principle of "Driven by R&D, Backed by Technology, and Supported by Service," Hanwei Laser offers services to B2B clients through a team of experts with profound knowledge in laser welding and related fields. Its products are extensively used in industries like new energy batteries, automotive, electronics, and home appliances, showcasing outstanding welding performance. Significantly, the company has achieved world - leading innovations: the AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine has overcome the difficulties in welding highly reflective materials, and models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have effectively solved specific welding problems in the power battery sector.
