2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode

ब्रांड नाम:	HanWei
मॉडल संख्या:	HW-20-50500
एमओक्यू:	1 Set
कीमत:	USD / Set
भुगतान की शर्तें:	T/T
आपूर्ति करने की क्षमता:	2000 Sets / year

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

Place of Origin:

Shenzhen. China

प्रमाणन:

Cleaning Laser Beam Size:

0-300mm Adjustable

Laser Output Mode:

Cleaning Materials:

Steel / Stainless Steel

Handheld Laser Gun Weight:

0.7 Kg

Adopt Laser Source:

1064~1080nm Fiber laser source

Laser Power:

2000W

Collimation Focal Length:

Focusing Focal Length:

500mm

Machine Electric Consumption:

8 Kw/h about

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

उत्पाद का वर्णन

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode Description:

The Compact Single-Motor Cleaning Unit provides a highly efficient cleaning solution. Essentially, it employs a single motor as its power source, which drives the internal pump and other components of the cleaning system. This cleaning tool is particularly effective at cleaning materials such as steel and stainless steel. It draws water from the water tank and boosts its pressure. Through the spray gun and other auxiliary parts, a high-pressure water jet is produced to remove dirt from the surfaces of various objects.

The cleaning gun is lightweight and has a compact size. It is designed in line with ergonomic principles, ensuring convenient operation. It can easily adapt to a wide range of cleaning tasks under different working conditions. Whether in large-scale industrial production environments or during outdoor on-site maintenance work, it delivers excellent results.

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode 0

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode Features:

Product Name: Fiber Laser Cleaning Machine
Laser Power: 2000W
Handheld Laser Gun Weight: 0.7kg
Cleaning Laser Beam Form: Line “一”
Cleaning Materials: Carbon Steel / Stainless Steel
Standard Focus length: 50 & 500mm standard Focus length adjustable
Positioning: Red Guide Beam
Laser Head Connection: QBH
Cleaning Laser Beam Size: 0-300mm Adjustable
Wavelength: 1064nm~1080nm
Machine Electric Consumption: 8 Kw/h about
Gas: Nitrogen / No Gas

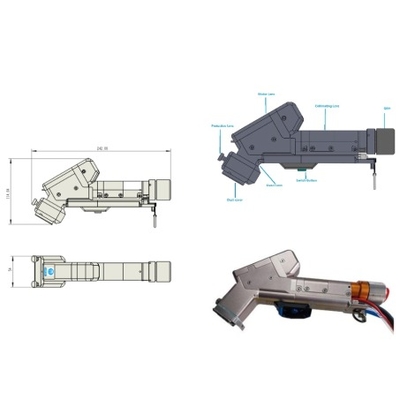

The Fiber Laser Cleaning Nozzle, a high-grade Fiber Laser accessory featuring a QBH fiber interface, delivers outstanding performance. This Fiber-optic Laser Cleaning device is not only lightweight but also highly user-friendly. It has a total weight of merely 0.7 kg. The diameter of its cleaning beam is adjustable within the range of 0 to 300 mm, and it comes with a red positioning beam to ensure precise placement.

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode Technical Parameters:

Product Name	Handheld Single Motor Laser Cleaning Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Laser Power	2000W
Laser Output Mode	CW
Cleaning Beam Size	0-300mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Fiber Cable	10m Standard. (15 / 20m Option)
Standard Focus Length	50 & 500mm standard Focus length adjustable
Position Guide	Red Guide Light
Cleaning Parameter Save	10 kinds of different welding parameter save

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode 1

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode Application Advantages:

The HanWei HW - 20 - 50500 handheld cleaning tool boasts notable practical advantages. It features high portability. Due to its slim and light - weight design, it can be easily transported and put to use. This makes it particularly well - suited for cleaning in confined spaces and for mobile cleaning tasks, greatly enhancing operational flexibility as it doesn't depend on complicated equipment or a large number of workers.

The handheld single - vibration cleaning head demonstrates exceptional adaptability. It can skillfully handle various surface materials, a broad range of object shapes, and different levels of dirt. Whether it's for vehicle maintenance, household cleaning, or industrial equipment repair, its performance remains reliable. Moreover, it is energy - saving and economical. The single - motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process, reducing both time and energy consumption. Because of its simple structure, it has lower production and maintenance costs. It is easy to use and doesn't require professional training, allowing all users to operate it effortlessly and reducing operational errors and training costs.

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode Packing:

One Handheld Laser Head
One Controller
A set of Connection Cables and Line
One 15v Power Supply

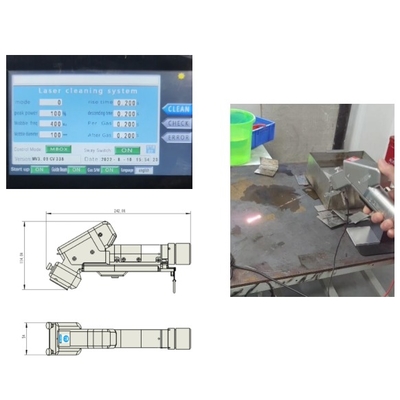

One Touch Screen Monitor
One Safety Switch Clip
Two Protective Lens
One Dust Cover
One User Manual

2000W High-tech Handheld Single Motor Laser Cleaner with CW Laser Output Mode 2
