HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding

HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding

ब्रांड नाम: HanWei
मॉडल संख्या: HW-YD-600-1000/ 1500/ 2000W
एमओक्यू: 1 सेट
कीमत: USD / Set
भुगतान की शर्तें: टी/टी
आपूर्ति करने की क्षमता: 2000 सेट / वर्ष
विस्तृत जानकारी
उत्पत्ति के प्लेस:
शेनझेन, चीन
प्रमाणन:
CE
नमूना:
HW-YD-600-1000/HW-YD-600-1500/HW-YD-600-2000
लेजर शक्ति:
YAG लेजर 600 W फाइबर लेजर 1000W/YAG लेजर 600 W फाइबर लेजर 1500W/YAG लेजर 600 W फाइबर लेजर 2000W
वेवलेंथ:
915nm + 1064nm
शक्ति स्थिरता:
± 0.5 %
पल्स चौड़ाई:
0.5 - सीडब्ल्यू
बिजली उत्पादन:
1600 w/2000 w/2600 w
फाइबर कोर (यूएम):
400+50 उम
कूलिंग मोड:
पानी की मदद से ठंडा करने वाले उपकरण
पैकेजिंग विवरण:
निर्यात प्लाईवुड पैकिंग
आपूर्ति की क्षमता:
2000 सेट / वर्ष
प्रमुखता देना:

YAG Diode composite laser welder

,

Power battery sealing nail welder

,

Industrial laser welding machine with warranty

उत्पाद का वर्णन
HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding
The YAG and Diode Hybrid-laser welding system combines the HW-Y-600 single lamp & rod laser with a diode laser source. The diode laser preheats to improve absorptivity and facilitate keyhole formation, while the main laser outputs energy to weld aluminum, reducing defects caused by gas hole burst. This system enhances molten pool stability during high-speed welding and improves overall welding quality while effectively increasing welding speed through reduced energy input.
Technical Specifications
Model HW-YD-600-1000 HW-YD-600-1500 HW-YD-600-2000
Laser Power YAG laser 600 W
Fiber laser 1000W
YAG laser 600 W
Fiber laser 1500W
YAG laser 600 W
Fiber laser 2000W
Wavelength 915nm + 1064nm 915nm + 1064nm 915nm + 1064nm
Power stability ± 0.5 % ± 0.5 % ± 0.5 %
Output Power 1600 W 2000 W 2600 W
Cooling method Water Cooling Water Cooling Water Cooling
Fiber core (um) 400+50 um 400+50 um 400+50 um
Pulse width 0.5 - CW 0.5 - CW 0.5 - CW
Application Advantages
  • Independent research and development, production, and sales
  • Specialized for power battery sealing nail welding
  • Produces smooth and aesthetically pleasing welds
  • Excellent sealing performance with high yield rates
Area of Application
  • New Energy (Power Battery Sealing Nail Welding)

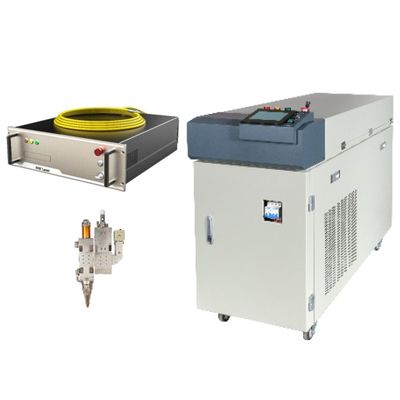

HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding 0

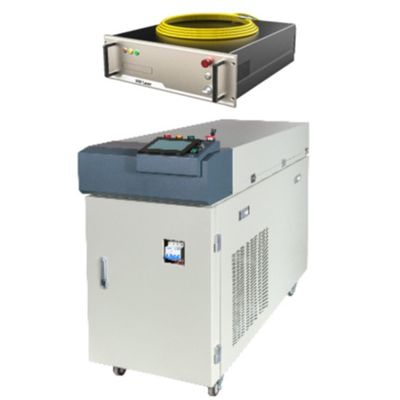

HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding 1

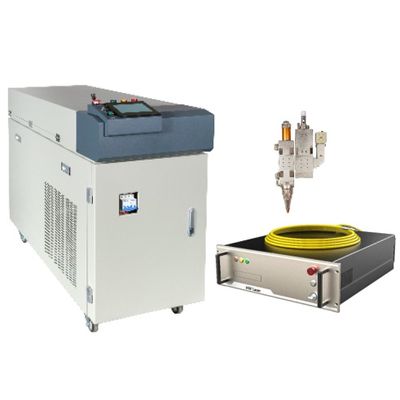

HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding 2
HW YAG + Diode Composite Laser Welding Machine for Power Battery Sealing Nail Welding 3
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.
Our Product Portfolio
  • Ring-Spot laser welding equipment
  • Blue laser welding equipment
  • Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
  • YAG and Diode laser welding equipment
  • Mold repair laser welding equipment
  • QCW laser welding equipment
With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, and medical devices. Our products deliver exceptional welding performance across multiple applications.
