| ब्रांड नाम: | HanWei |
| मॉडल संख्या: | HW-BFH-XXXXXXX |
| एमओक्यू: | 1 सेट |
| कीमत: | USD / Set |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | 2000 सेट / वर्ष |

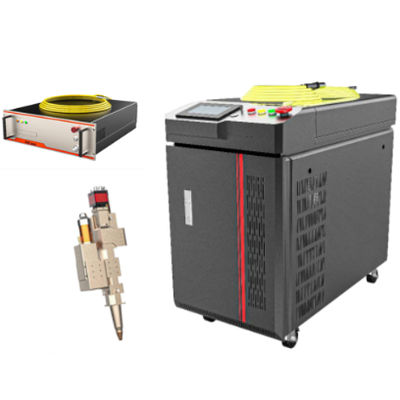

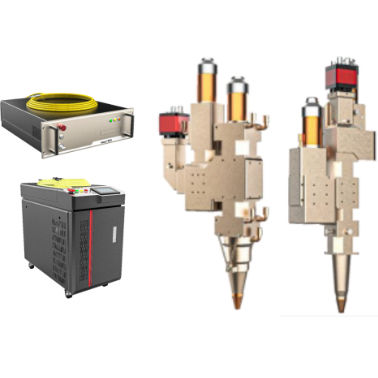

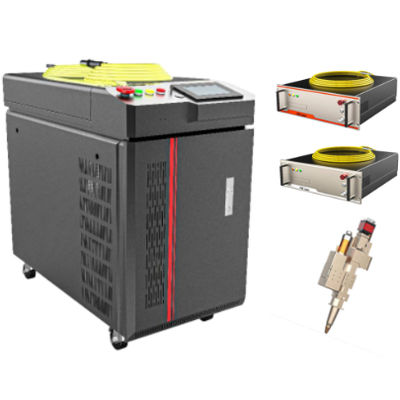

The Hanwei Diode-Fiber Hybrid Laser Welding Head merges diode laser (915nm) and fiber laser (1064nm) technologies to achieve coaxial integration. This innovative solution delivers excellent performance in welding thick metals and high-reflectivity materials (e.g., gold, silver, copper, and aluminum), featuring superior absorption capacity that minimizes sparking while producing high-quality welds with exceptional surface flatness.
Designed exclusively for the seal welding of power battery covers, this system creates smooth, defect-free weld seams. It not only successfully eliminates the risks of battery leakage and explosion but also significantly boosts welding efficiency.
| Model | HW-BFH-XXXXXX |
|---|---|
| Laser Power | Diode laser ≤ 30000 W Fiber laser ≤ 4000 W |
| Accessible Wave Range | 915nm + 1064nm |
| Interface Type | QBH - QBH |
| Focus Length | 200 |
| Collimating Length | Diode 110 - Fiber 100/120/150 |
| Net Weight | 2.5 Kg |
| Head Type | Y |
| Usable Laser Source | Diode and Fiber laser source |
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to every system integrator. As a certified national high-tech enterprise and recipient of the "specialized, sophisticated, distinctive, and novel" recognition, we focus on comprehensive R&D, production, and sales of specialized laser welding technologies.
With a team of laser welding R&D experts, we serve industries including new energy batteries, automotive, electronics, and medical devices, delivering unmatched welding performance across diverse applications.
